Affordable Innovation

Affordable Innovation

Deliberately built with just the features teams and teachers use most and the quality hardware they deserve.

Fundamental Apps

Fundamental Apps

Annotate on anything, easily screen share, simple built-in screen recorder, stream up to 9 devices at once.

Simplified Specs

Simplified Specs

Choose from 3 screen sizes that include 32GB, 4K UI, 10-Watt speakers, blue light filter.

Screen Skills Guru

Screen Skills Guru

Unlimited, free Screen Skills Guru support and training with all of our solutions via audio, video, chat, email or phone.

TL6 for Education

Build the touchscreen that teachers need to personalize learning and promote student engagement.

LEARN MORE

TL6 for for Business

The industry's best quality touchscreen easy-to-use, affordable,compatible smart screen.

LEARN MORE
Screen Skills Guru

Free, unlimited
help & training.

Write on anything, share from everywhere, that's it.

Hardware/System

  • 4k whiteboard infinite display, which can naturally zoom in and out of pictures, web pages, videos, and documents
  • High-precision touch, support 2.0mm fine recognition, fine pen tip, smoother writing experience
  • Support any signal source annotation function, which can be switched at any time
  • Support multi-screen projection, adapt to multiple devices to achieve simultaneous interpretation of 4 pictures
  • Comes with a Bluetooth module, which can be flexibly connected to a Blutooth speaker
  • Download the apps you want with Android 8 and Google Playstore
  • Choose from 3 screen sizes that include 32GB, 4K UI, 10-Watt speakers, blue light filter

Software Package

  • OneScreen Annotate: Up to 10 users work together in a shared whiteboard space. Easily exchange and annotate content in real-time
  • OneScreen EShare: Share, mirror and cast devices/screens or applications wirelessly
  • OneScreen Write: Software to write on any content, save, source via QR code or email
  • Android Applications : with full access to Android Apps including Chorme, YouTube,Office Apps and more
  • Google play store : access with multi user login support

Support

  • Free unlimited online training with Screen Skills Guru team
  • Free unlimited online tech support Screen Skills Guru team

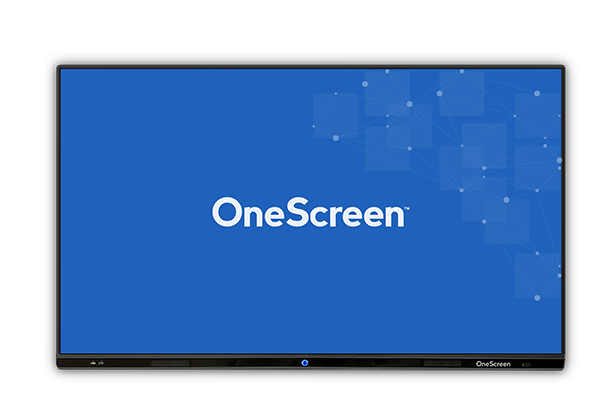

OneScreen Touchscreen TL6

Sizes, Specifications and Features

Get a free quote for
Applications
Interactive Whiteboard OneScreen Annotate is interactive whiteboard and annotation software
Screen Share & Stream EShare software, multi-device screen share & streaming
Annotation OneScreen Write software, write on any content, save, transfer via QR code or email
Android Applications Full access to Android Apps including Chorme, YouTube, Office Apps and more
Google Play Store Full access to Google play store with multi-user login support
Help & Training
Free Help & Training Unlimited Screen Skills Guru help & training available in one click on video or by chat, phone or email
Product Series
Panel Size 65″ 75″ 86″
Series TL6 TL6 TL6
Model No OneScreen Touchscreen TL6-65 OneScreen Touchscreen TL6-75 OneScreen Touchscreen TL6-86
Inside Bezel Dimensions 56.23″(W)×31.63″(H) 64.95” (W) × 36.53” (H) 74.61″(W)×41.97″(H)
Panel Spec
BackLight Source LED LED LED
Color Depth 10BIT/1.07 G 10BIT/1.07 G 10BIT/1.07 G
Panel brand LG LG LG
Resolution 3840x2160 3840x2160 3840x2160
Refresh 60HZ 60HZ 60HZ
Brightness 350cd/㎡ 350cd/㎡ 350cd/㎡
Contrast 1200:1(Typ.) 1200:1(Typ.) 1200:1(Typ.)
Viewing Angle 178°/ 178° 178°/ 178° 178°/ 178°
Touch System
Touch Type IR infrared IR infrared IR infrared
Response Time <8ms <8ms <8ms
Touch points 20 20 20
Touch Resolution 32768 x 32768 32768 x 32768 32768 x 32768
Touch accuracy <2mm <2mm <2mm
Drive System Parameters
CPU Cortex A73x2 A53x2 1.5GHZ Cortex A73x2 A53x2 1.5GHZ Cortex A73x2 A53x2 1.5GHZ
RAM 3G DDR3 3G DDR3 3G DDR3
Flash 32GB (Standard) 32GB (Standard) 32GB (Standard)
System Android 8.0 Android 8.0 Android 8.0
Input Output Interface
1x RS232, 1x YPBPR IN, 2x HDMI IN, 2x RJ45, 1x Touch usb ,1x VGA IN, 1x VGA AUDIO IN, 2x USB 2.0, 2x USB 3.0 (front), 1x AV IN, 1x AV OUT, 1x Earphone (3.5 mm) 1x RS232, 1x YPBPR IN, 2x HDMI IN, 2x RJ45, 1x Touch usb ,1x VGA IN, 1x VGA AUDIO IN, 2x USB 2.0, 2x USB 3.0 (front), 1x AV IN, 1x AV OUT, 1x Earphone (3.5 mm) 1x RS232, 1x YPBPR IN, 2x HDMI IN, 2x RJ45, 1x Touch usb ,1x VGA IN, 1x VGA AUDIO IN, 2x USB 2.0, 2x USB 3.0 (front), 1x AV IN, 1x AV OUT, 1x Earphone (3.5 mm)
Other Parameters
BlueTooth Bluetooth 4.1 (supports file sharing and external Bluetooth devices) Bluetooth 4.1 (supports file sharing and external Bluetooth devices) Bluetooth 4.1 (supports file sharing and external Bluetooth devices)
Wifi 2.4Ghz/5Ghz (also supports Wifi hotspot) 2.4Ghz/5Ghz (also supports Wifi hotspot) 2.4Ghz/5Ghz (also supports Wifi hotspot)
OPS PC Support OPS PC supported (options are available for i5 and i7 PCs) WINDOWS10 (Optional) WINDOWS10 (Optional)
Speakers 2x 15W Speakers with surround sound and equalizer 2x 15W Speakers with surround sound and equalizer 2x 15W Speakers with surround sound and equalizer
Other Functions
EShare Share up to 9 screens simultaneously on the OneScreen. Screen mirroring back to student devices now allows teacher to pass view only and view and control access. Authenticate users before letting them share screens. Password protection available. Share up to 9 screens simultaneously on the OneScreen. Screen mirroring back to student devices now allows teacher to pass view only and view and control access. Authenticate users before letting them share screens. Password protection available. Share up to 9 screens simultaneously on the OneScreen. Screen mirroring back to student devices now allows teacher to pass view only and view and control access. Authenticate users before letting them share screens. Password protection available.
Temperature detection function Display the internal temperature of the machine on the all-in-one menu interface and automatically shut down if there is a failure or the temperature exceeds the standard Display the internal temperature of the machine on the all-in-one menu interface and automatically shut down if there is a failure or the temperature exceeds the standard Display the internal temperature of the machine on the all-in-one menu interface and automatically shut down if there is a failure or the temperature exceeds the standard
Gestures Palm erase, two finger zoom in/zoom out, pan, pen thickness based touch recognition Palm erase, two finger zoom in/zoom out, pan, pen thickness based touch recognition Palm erase, two finger zoom in/zoom out, pan, pen thickness based touch recognition
Power Supply Parameters
Rated power consumption ≦180W ≦320W ≦410W
Standby power <1W <1W <1W
Rated voltage 100-240VAC 50/60HZ 100-240VAC 50/60HZ 100-240VAC 50/60HZ
Environment-al Requirement
Operating Temperature -10℃-50℃ -10℃-50℃ -10℃-50℃
Operating Ambient Humidity 10%-90% 10%-90% 10%-90%
Storage Temperature -20℃-60℃ -20℃-60℃ -20℃-60℃
Storage Humidity 10%-90% 10%-90% 10%-90%
Panel Size 65″ 75″ 86″
Remote Controls 1x Remote Control 1x Remote Control 1x Remote Control
Cables & Stylus 2x Stylus pens, 1x Extendible Stylus,1x Remote Control, 1x Power cord, 1x HDMI cable, 1x USB Touch cable 2x Stylus pens, 1x Extendible Stylus,1x Remote Control, 1x Power cord, 1x HDMI cable, 1x USB Touch cable 2x Stylus pens, 1x Extendible Stylus,1x Remote Control, 1x Power cord, 1x HDMI cable, 1x USB Touch cable
Panel Size 65″ 75″ 86″
Product Dimensions 58.46″ x 3.60″ x 35.33″ 67.20″ x 3.61″ x 40.26″ 76.90″ x 3.62″ x 45.72″
Shipping Dimensions 65.20″ x 8.46″x 40.74″ 75.98″ x 8.86″ x 46.65″ 84.88″ x 8.86″ 52.24″
Product Weight 99.2 lbs 134.5 lbs 163.2 lbs
Shipping Weight 130 lbs 178.5 lbs 209.4 lbs
Wall Mount 500x400 600x400 800x400
Advanced HW Replacement Warranty Available at time of purchase only Available at time of purchase only Available at time of purchase only

*First year of subscriptions to all cloud-based services included
