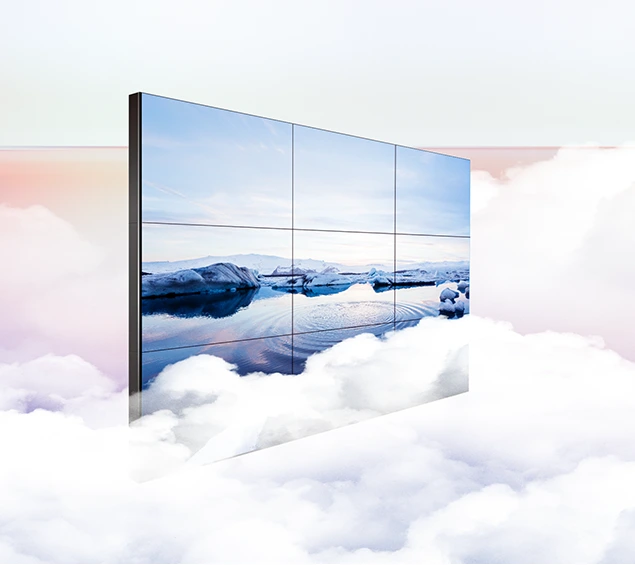

OneScreen Wall
Zero Bezel

State-of-the-art active bezel video wall

Unparalleled quality of view-ability in a zero bezel, turnkey package.

Premium Quality Tech.

Zero millimeter, active bezel seamlessly connecting up to 144 screens at once.

Turnkey Solution

Video wall hardware, control system technology and installation from one company.

Flexible Design

Custom sizing, front side service, and multiple input sources.

Support Centric

Live help, in one click, so your work moves forward now.

The video wall of choice for organizations needing the highest quality.

  • Active zero bezel technology
  • The most narrow pixel pitch available
  • 4K resolution
  • Seamless and high quality display
  • Individual panel content control
  • 55″ panels that allow a customized video wall
  • Real-time resolution adaptation
  • 4K resolution and 3D compatible
  • Scalable controller that can simulaneously control up to 144 screens
  • iOS application for controller
  • Up to 4 input sources per screen
  • Complete turnkey solution
  • Durable floor stand included
  • Free unlimited training and tech support
  • 3 year warranty

OneScreen Wall Zero Bezel w1

Full Specifications and Features

Pixel Pitch

0.63mm

Wall Type

TFT-LCD

Power Consumption Max (Per Panel)

≤280W

Noise Free Operation

Yes

Weight

66 lbs

Resolution (Per Panel)

1920 x 1080

Active Bezel

Yes

Colors

16.7M

Environment

Indoor

Diagonal Length of Panel

55″

Bezel Width

0 mm

Contrast

4500 : 1

Operating Temperature

0 – 40° C

Viewing Angle

178°

Warranty

Yes

Brightness

500 cd/m2

Humidity

≤ 90% (No Condensation)

Input Ports (On Panel)

BNC, DVI, HDMI, RS 232, USB, VGA

Power Requirements

AC 100-240V, 50/60 Hz

Response Time

6 ms

Dimensions

47.9″ x 27.1″ x 4.2″

Picture in Picture Display

Yes

HDCP Compliant

 Yes

Input Ports

Spyder X20-0808 with 8 inputs (HDSDI, SDI AND 3G SDI) HDMI, CVBS, Optical, Dual Link DVI, YPbPr, VGA

3D Video Wall Display

 Yes (Processor 980)

Output Ports

 DVI/VGA, Twisted Pair, SDI, Optical Signal

Cross-screen Displaying

Yes

No.of Display Per Screen (Max)

 4

OS Supported

Windows 2000/XP/Vista/7/8/10

No.of Outputs Max (Max no.of screens)

144

Resolution Real-time Total Adaptation

 Yes

Input Signal Preview in UI

Yes

Screen Overlapping

 Yes

OneScreen Wall is a turnkey solution that includes hardware, installation, service and support. Contact us for more information about our full service offering.

OneScreen Wall Zero Bezel w1

For a quote, please configure your wall by choosing the number of panels.

We also offer Narrow and Ultra Narrow bezel options.
Learn more here.

OneScreen Narrow Bezel

OneScreen Wall - Narrow Bezel

OneScreen Ultra Narrow Bezel

OneScreen Wall - Ultra Narrow Bezel
